pointwise_ops.c File Reference

Contains functions to do pointwise operations. More...

#include "libftsh.h"

Defines
#define	ENTEREXIT   0
Functions
void	pointwise_multiply (REAL *out, REAL *in_1, REAL *in_2, int numpts)
void	reflect_evenodd (REAL *even, REAL *odd, REAL *whole, int numpts, int dir)
void	remove_rootsin (REAL *out, REAL *in, REAL *node, int numpts)

---

Detailed Description

Contains functions to do pointwise operations.

Summary:

• pointwise_multiply multiplies two arrays.
• reflect_evenodd forms even and odd parts of an array.
• remove_rootsin divides an array by sqrt(sin(phi))

---

Function Documentation

void pointwise_multiply	(	REAL *	out,
		REAL *	in_1,
		REAL *	in_2,
		int	numpts
	)

Pointwise multiply two vectors to form the third.

INPUTS:

• out -- a vector of length numpts in which to put the output. May be the same as in_1 or in_2
• in_1 -- the first input vector, of length numpts
• in_2 -- the second input vector, of length numpts
• numpts -- the length of the vectors

OUTPUTS: out -- is written onto; out[i]=in_1[i]*in_2[i];

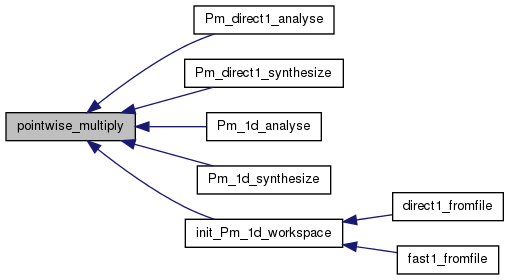

Here is the caller graph for this function:

void reflect_evenodd	(	REAL *	even,
		REAL *	odd,
		REAL *	whole,
		int	numpts,
		int	dir
	)

Form the even and odd parts of the input vector.

It can also reverse the process.

INPUTS:

• even -- In forward mode, the even portion will be put here. In reverse mode, the even portion is read from here. Of length (numpts+1)/2.
• odd -- In forward mode, the odd portion will be put here. In reverse mode, the odd portion is read from here. Of length numpts/2.
• whole -- in forward mode, the fcn to read from. In reverse mode, where to put the function. Of length numpts.
• numpts -- the length of whole and twice the length of even and odd. If numpts is odd, the extra point goes to even.
• dir -- the direction to go in
  • dir==1 fold whole into even/odd
  • dir==-1 unfold even/odd into whole
  • else error

OUTPUTS:

• In forward mode even and out are written onto, with the even/odd reflections of whole:

  • even[i]=whole[i]+whole[numpts-1-i]
  • odd[i]=whole[i]-whole[numpts-1-i]

  If the number of points is odd, the center point is copied into even, and omitted from odd.

• in reverse mode undoes this process

NOTES:

• the exception handling for odd numpts might slow this down

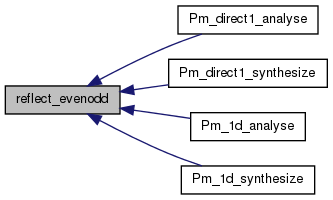

Here is the caller graph for this function:

void remove_rootsin	(	REAL *	out,
		REAL *	in,
		REAL *	node,
		int	numpts
	)

Divide the vector in by sqrt(sin( node values)).

INPUTS:

• out -- a pointer to where to put the outputs. May be the same as in.
• in -- the input zector, of length numpts
• node -- and array holding the sampling nodes, corresponding to numpts physical points. Should be in (0,PI)
• numpts -- the number of sample points. (plus 1 if odd)

OUTPUTS : out -- is written onto out[i]=in[i]/sqrt(sin(node[i]))

NOTES:

• For safety we do sqrt(fabs(sin(node[i]))) This is so if the node value is out of range the routine doesn't crash
• We could still crash by dividing be zero

Here is the caller graph for this function:
