direct1_fromfile.c File Reference

Load precomputed data for direct1 transform. More...

#include "libftsh.h"

Defines
#define	ENTEREXIT   0
Functions
void	direct1_fromfile (int *numpts_ptr, int *band_limit_ptr, REAL **node_ptr, REAL **weight_ptr, Pm_Direct_d **pmn_matrix_ptr, Pm_1D_Workspace *pmnwork, FILE *fp)
void	load_direct1 (int *numpts_ptr, int *band_limit_ptr, REAL **node_ptr, REAL **weight_ptr, Pm_Direct_d **pmn_matrix_ptr, FILE *fp)

---

Detailed Description

Load precomputed data for direct1 transform.

Summary:

• load_direct1 loads from file.
• direct1_fromfile interprets the output of load_direct1 and sets up.

---

Function Documentation

void direct1_fromfile	(	int *	numpts_ptr,
		int *	band_limit_ptr,
		REAL **	node_ptr,
		REAL **	weight_ptr,
		Pm_Direct_d **	pmn_matrix_ptr,
		Pm_1D_Workspace *	pmnwork,
		FILE *	fp
	)

This routine loads the initialization dumped by dump_direct1, interprets it and does all the set-up necessary to do the synthesis or analysis transform.

INPUTS: fp -- the objects are read from the file pointed to by fp, in binary format. The file must be opened before calling this routine.

OUTPUTS:

• numpts -- the number of points on the full interval.
• band_limit -- the bound on the degree of the expansion. In \(P^m_n\) notation this bounds n.
• node -- an array of length numpts with the nodes, usually Arcsin of the usual gaussian nodes.
• weight -- an array of length numpts with the quadrature weights
• pmn_matrix -- an array of band_limit (==order_limit) Pm_Direct_d structures, each representing the matrix for one m.
• pmn_work -- a structure holding workspace and other precomputed values used by the transform, independent of m

NOTES:

• node and weight are not needed for the synthesis/analysis routines but are provided here for other uses.

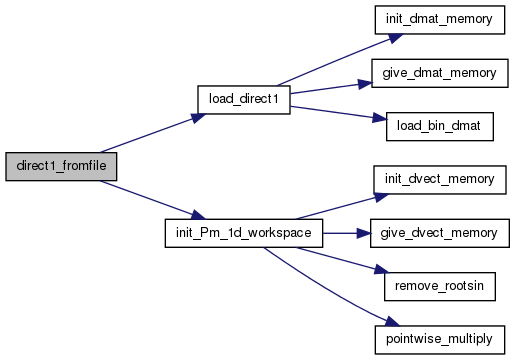

Here is the call graph for this function:

void load_direct1	(	int *	numpts_ptr,
		int *	band_limit_ptr,
		REAL **	node_ptr,
		REAL **	weight_ptr,
		Pm_Direct_d **	pmn_matrix_ptr,
		FILE *	fp
	)

This routine loads the initialization dumped by dump_direct1 We interpret what we read and re-align pointers and such to get things ready to use

INPUTS: fp -- the objects are read from the file pointed to by fp, in binary format. The file must be opened before calling this routine.

OUTPUTS:

• numpts -- the number of points on the full interval.
• band_limit -- the bound on the degree of the expansion. In P^m_n notation this bounds n.
• node -- an array of length numpts with the nodes, usually Arcsin of the usual gaussian nodes.
• weights -- an array of length numpts with the quadrature weights
• pmn_matrix -- an array of band_limit (==order_limit) Pm_Direct_d structures, each representing the matrix for one m.

Here is the call graph for this function:

Here is the caller graph for this function:
