U.S. Patent for Zebra Mussel Control Apparatus

3/1989
8/1989
2/1990
3/1990
11/1990
4/1991
4/1991
5/1991
8/1991
9/1991
11/1991
12/1991
3/1992
7/1992
8/1992
9/1992
10/1992
11/1992
1/1993
2/1993
3/1993
3/1993
4/1993

[54] Method And Apparatus For Controlling Zebra Mussels In Water Conduits [75] Inventor: Tiao J. Chang, Athens, Ohio [73] Assignee: Ohio University, Athens, Ohio [21] Appl. No.: 282,346 [22] Filed: Oct. 11, 1994 Related U.S. Application Data [62] Division of Ser. No. 80,047, Jun. 18, 1993, Pat. No. 5,376, 282. [51] Int. Cl.⁶......................................... C02F 1/20 [52] U.S. Cl. ................. 96/194; 210/750; 210/764; 422/6; 422/33; 95/260; 95/266 [58] Field of Search ........................ 210/750, 764; 422/6, 33; 95/260, 266; 96/194 [56] References Cited U.S. PATENT DOCUMENTS 1,321,999 11/1919 Elliott ................................................ 95/266 1,650,129 11/1927 Jacobus ............................................. 210/750 1,801,178 4/1931 Sim ................................................... 95/266 1,809,441 6/1931 Elliott . 2,147,677 2/1939 Smith ................................................ 99/105 2,376,221 5/1945 Baker ................................................ 183/2.5 3,116,999 1/1964 Armbruster ........................................... 75/49 3,273,313 9/1966 Livesay et al. ....................................... 95/266 3,616,601 11/1971 Senkewich . 4,255,950 5/1981 Makino et al. ....................................... 55/196 4,316,725 2/1982 Hovind et al. ....................................... 95/260 4,328,638 5/1982 Smithson ............................................ 43/124 4,432,775 2/1984 Won .................................................... 55/41 4,548,622 10/1985 Suzuki et al. ........................................ 55/204 4,565,634 1/1986 Lydersen ........................................... 210/718 4,579,665 4/1986 Davis et al. ........................................ 210/755 4,609,385 9/1986 Burgess .............................................. 55/193 4,755,195 7/1988 Compton et al. ...................................... 55/55	4,816,163 4,857,209 4,900,336 4,906,385 4,970,239 5,008,075 5,011,615 5,015,395 5,040,487 5,044,761 5,062,967 5,069,722 5,096,601 5,128,050 5,141,754 5,148,777 5,152,637 5,160,047 5,180,403 5,186,841 5,192,451 5,193,482 5,203,890	3/1989 8/1989 2/1990 3/1990 11/1990 4/1991 4/1991 5/1991 8/1991 9/1991 11/1991 12/1991 3/1992 7/1992 8/1992 9/1992 10/1992 11/1992 1/1993 2/1993 3/1993 3/1993 4/1993	Lyons et al. ............................................... 210/698 Lyons et al. ............................................... 210/755 Pittner et al. ................................................ 95/260 Lyons et al. ............................................... 210/698 Whitekettle et al. ........................................ 514/665 Rufulo .......................................................... 422/6 Minderman ................................................. 210/764 Muia et al. ................................................. 210/755 Bollyky et al. ................................................. 119/4 Yuki et al. .................................................. 366/139 Muia et al. .................................................. 210/755 Murphy ........................................................ 134/22 Muia et al. .................................................. 210/755 Gill ............................................................210/755 Ekis, Jr. et al. .............................................. 424/661 Brockburst .................................................... 123/41 Wayne ....................................................... 405/127 McCarthy ................................................... 210/749 Kogure .......................................................... 55/53 Schick ........................................................ 210/760 Gill ........................................................... 210/755 McLaughlin .................................................... 119/4 Tatsuo ......................................................... 55/164
	FOREIGN PATENT DOCUMENTS
	1193204 2405295 260008A1 0012914 643750 2173712	9/1985 4/1974 9/1988 5/1979 6/1984 10/1986	Canada . Germany . Germany . Japan . Switzerland . United Kingdom .

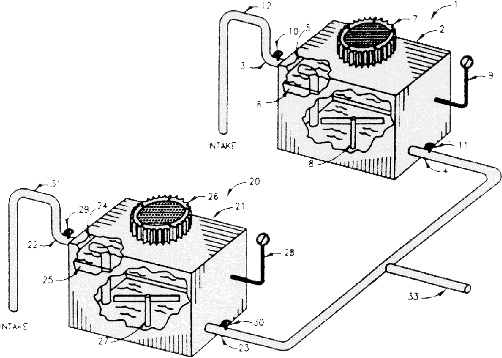

	Primary Examiner--Neil McCarthy Attorney, Agent, or Firm--Standley & Gilcrest [57] ABSTRACT The present invention has two basic aspects: (a) a mechani- cal method for controlling the macrofouling of zebra mus- sels; and (b) a mechanical apparatus for reducing the dis- solved oxygen of natural source water, such as industrial or municipal use, to a level below that sufficient to support the survival respiration of zebra mussels. 4 Claims, 3 Drawing Sheets
